Listen guys, I hate to tell you this, but you've got missing planes.

[NNadir]

I always love to read the part of Journals, almost always at the end of an issue, where one scientist or group offers a commentary on an earlier paper and receives a response from the original authors commenting on the comments made. Sometimes these exchanges can border on hostility, but at other times, it can be an enlightening exchange.

Such an exchange took place in the current issue of Nature as of this writing. It's an article about lead perovskites, which are often proposed as components of solar cells and other opticoelectronic devices. (In Nature, this type of exchange is called "Matters Arising." )

The comment, "Hey guys, you've got missing planes: Deng, YH. Perovskite decomposition and missing crystal planes in HRTEM. Nature 594, E6–E7 (2021).

From the text of the comment:

Organic–inorganic hybrid perovskites have recently emerged as a new class of semiconductor for high-performance optoelectronic devices, but their extreme sensitivity to electron beam irradiation hinders our ability to obtain the intrinsic structures from high-resolution transmission electron microscopy (HRTEM) characterizations. Ning and co-workers1 reported lead sulfide (PbS) quantum dots in methylammonium lead iodide (MAPbI3) solids with perfect lattice matching, on the basis of confirmation from HRTEM, electron diffraction and other studies1. However, I have found that some crystal planes were missing in their characterizations, and as demonstrated below, the material in their figures cannot be MAPbI3, but possibly lead iodide (PbI2)—the product of perovskite decomposed by electron-beam irradiation. This finding aims to raise awareness among researchers and avoid possible mistakes in the HRTEM characterization of electron-beam-sensitive materials in the future.

It is noteworthy that only the (22¯4), (224) crystal planes appear, and that the (11¯2), (112) crystal planes are missing in HRTEM characterizations in the original paper1. Figure 1a shows the structure of MAPbI3 and Fig. 1b shows the simulated electron diffraction along the [2¯01] zone axis. Clearly, (11¯2), (112) planes exist in the electron diffraction pattern. Moreover, (11¯2), (112) planes are also present in HRTEM images under low electron dose2, selected-area electron diffraction (SAED)3,4 and X-ray diffraction (XRD)5,6,7 characterizations.

Clearly...

Fig. 1: Ball and stick models, simulated electron diffraction patterns of MAPbI3, PbS and PbI2.



The caption:

a, The atomic ball and stick model of MAPbI3. b, The simulated electron diffraction pattern of MAPbI3. c, The structure of PbS. d, The simulated electron diffraction pattern of PbS. The (11¯2), (112) planes appear in MAPbI3 because of the I4/mcm space group. However, there are no {101} planes displayed in the electron diffraction pattern of cubic PbS phase (Fm3¯m space group) due to systematic extinction. e, The structure of PbI2. f, The electron diffraction pattern of PbI2. The distances and angles between crystal planes in electron diffraction pattern of PbI2 are very similar to parameters in the original paper. Here, colours represent the following: red, lead; green, iodine; pink-blue group, methylamine; yellow, sulfur.

Additional text:

MAPbI3 perovskite is very sensitive to electron-beam irradiation and begins to decompose into PbI2 under 151 e Å?2 total dose irradiation10 (e, electron charge). The absence of crystal planes indicates that the material is no longer MAPbI3 perovskite, but other phases and structures10,11,12...

...In light of above clarification, the structure in the HRTEM images of the original paper1 is more likely to be PbI2, and the higher-contrast spots are caused by the mass thickness contrast effect13. Owing to lack of the corresponding in situ high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image in the original paper, it is impossible to prove that the higher-contrast spots are PbS quantum dots rather than PbI2 particles. Next, the authors should check the experimental conditions of HRTEM, especially the dose of the electron-beam irradiation. If possible, it would also be better if they compared the particle size and size distribution of colloidal quantum dots and quantum dots in perovskite in the original paper.

The original author's response is here: Ning, Z., Gong, X., Comin, R. et al. Reply to: Perovskite decomposition and missing crystal planes in HRTEM. Nature 594, E8–E9 (2021).

In our Letter published in 20151, we reported epitaxial growth of perovskite around PbS quantum dots. The quantum dot surface is passivated by the crystalline perovskite scaffolding without the need of conventional ligands, leading to a two-orders-of-magnitude enhancement in the photoluminescence quantum yield in infrared quantum dot films. This material provided efficient charge carrier transfer from the perovskite to the quantum dots, enabling sensitization.

In the accompanying Comment2, Deng asks whether there is enough evidence for PbS being embedded into perovskite, and in particular whether TEM images in the original Letter correspond to PbI2 as opposed to perovskite or PbS. Deng noted a difference in the estimated interplanar angle in his analysis of our published data (Deng finds 57°) compared to the value we report (60°). Deng also points out the absence of a diffraction spot related to the (112) plane of perovskite and suggests possible perovskite degradation.

The coexistence of perovskite and quantum dots is supported in the original Letter1 by optical absorption spectra, static and transient photoluminescence spectra, photoluminescence excitation spectra, X-ray photoelectron spectroscopy (XPS), high-angle annular dark-field imaging scanning transmission electron microscopy (HAADF-STEM) and Rutherford backscattering spectrometry (RBS). The density functional theory (DFT) simulations show that epitaxial alignment is possible and is needed to avoid interfacial traps.

In light of Deng’s questions, we revisited the analysis of the interplanar angle and the missing diffraction spots. Since the fast Fourier transform (FFT) is performed on a small subsection of the image to capture the PbS and perovskite lattices separately, the resulting diffraction pattern is diffused, and this leads to a range in determining the centre of each spot, and consequently to a range in angular estimates. Both pre-2015 and contemporaneous 2015 high-resolution transmission electron microscopy (HRTEM) studies also lacked evidence of the (112) plane reflection3,4,5,6,7,8,9. We agree that there is a possibility of perovskite degradation to PbI2 (ref. 3).

Given this possibility, we sought therefore—in light of advances in transmission electron microscopy (TEM) over the past six years—to investigate the materials using improved TEM equipment (aberration-corrected JEOL GrandARM (ARM300F)). We used the method of sample preparation described in the 2015 Letter1. We reduced the electron dose to 10 e Å?2 (e, electron charge), and see the characteristic Fourier spots attributed to {110} facets of MAPbI3 (Fig. 1a, b, d)...

In other words, "we credit what you say Professor Deng, and we went back and did it all over again with instruments that are more advanced than those we had in 2015..."

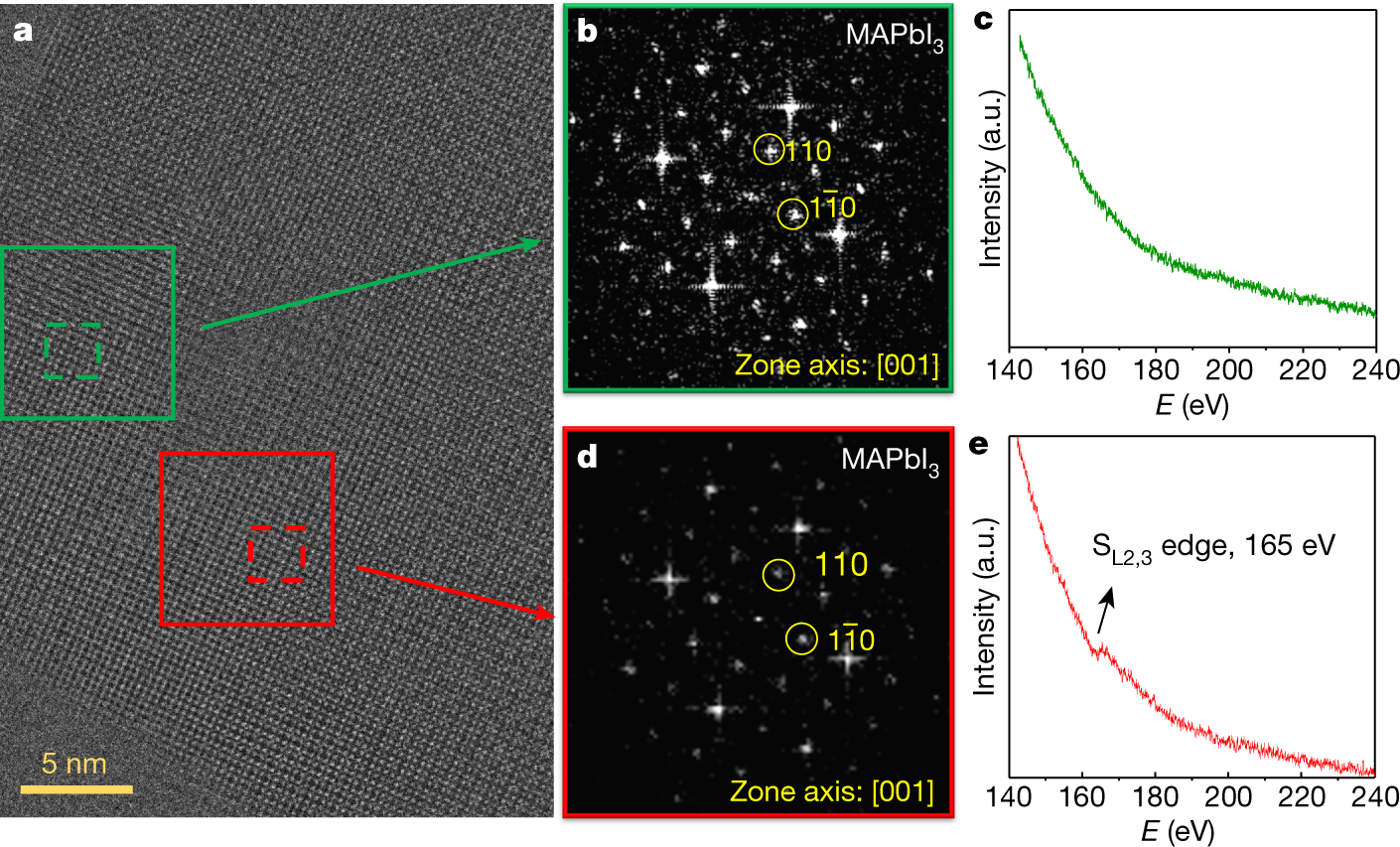

Fig. 1: TEM analysis of quantum dots in perovskite.



The caption:

a, HRTEM image. The red and green solid boxes denote the regions in which we performed FFT; the red and green dashed boxes represent the regions in which we performed EELS analysis. b, FFT image of the green solid box in HRTEM. c, The green curve shows the EELS spectrum from the green dashed box in a; no edge of sulfur is observed. d, FFT image of the red solid box in a. e, The red curve represents the EELS spectrum acquired from the red dashed box in a; the SL2,3 edge at 165 eV corresponds to element sulfur, indicating PbS quantum dots. a.u., arbitrary units.

Some more text:

We performed electron energy loss spectroscopy (EELS) spot-detection elemental analysis in selected areas (dashed boxes in Fig. 1a) and observed the SL2,3 edge at 165 eV—evidence of sulfur in the selected area (red box in Fig. 1e). This indicates that PbS quantum dots are embedded in the perovskite matrix. For comparison, we select another area (green box) for EELS, and observed no SL2,3 edge (Fig. 1e). We do not observe lattice distortion within the perovskite matrix in the region that contains PbS.

The new HRTEM images and the accompanying elemental analysis, together with optical and electronic properties, XPS and RBS from the original Letter, support the finding of dots in perovskite. The evidence of epitaxial alignment comes from the suite of characterization studies reported in the original work. Specifically, DFT reveals that the interfacial energy between PbS (110) and MAPbI3 (110) is less than 10 meV Å?2, suggesting that the epitaxial growth of perovskite on PbS is as energetically feasible as homoepitaxy of PbS on PbS or perovskite on perovskite...

...The use of PbS quantum dots in perovskite has been further investigated by a number of groups. Jung et al. reported using DFT that high-quality heteroepitaxy between PbS (100) and CsPbBr3 (100) was energetically favourable for both materials11. Masi et al. demonstrated the role of lattice matching at the heteroepitaxial interface between perovskite shell (MA) and PbS CQDs and its influence on the optoelectronic properties of PbS CQDs. High mobility (1.3 cm2 V?1 s?1) and high detectivity (2 × 1011 cm Hz1/2 W?1 with >110 kHz bandwidth) was achieved when the lattice constant mismatch is minimized between PbS and the perovskite shell12. Zhang et al. reported, on the basis of HRTEM, epitaxial coherence between the CsPbI3 and PbS CQD lattice13. Liu et al., using TEM, reported that CsPbBrxI3?x perovskites inherit the crystalline orientation of the embedded PbS quantum dots14. Improved performance has been observed in PbS-dot-in-perovskite solar cells, photodetectors, and light emitting diodes13,15,16,17.

We once again thank Deng for having motivated a fruitful dialogue and updates to the TEM studies of the original paper.

A pleasant exchange, I think.

The original paper is here: Ning, Z., Gong, X., Comin, R. et al. Quantum-dot-in-perovskite solids. Nature 523, 324–328 (2015).

I am not, by the way, competent in TEM analysis, and frankly some of this is over my head, but I shared these papers with my son who does a lot of imaging work in connection with his research.

As for lead perovskite solar cells, from my perspective, they are even worse than the existing solar industry since distributed lead solar cells is an even worse idea than distributed solar energy, and distributed energy is a bad idea since it ultimately results in distributed (and thus difficult to ameliorate) pollution. (There's going to be hell to pay for future generations for this pixilated affair.)

It doesn't matter of lead perovskites can make marginally more efficient solar cells. The "solar will save us fantasy" after half a century of wild cheering has not worked, is not working and won't work to displace dangerous fossil fuels and address climate change.

The the science involved with researching the matter, however, is surely of value. Many perovskite structures involve cesium chemistry, and I personally love the fascinating chemistry of that sometimes obscure element.

Have a nice day tomorrow.
